What is UV Coating in Packaging?

As a packaging boxes manufacturer, we know first impressions count. One finishing technique that makes boxes stand out is UV coating. It’s a clear liquid finish applied to printed packaging and instantly cured under ultraviolet light, creating a hard, glossy layer. The result is a vibrant, high-shine surface that makes colors pop and adds a luxurious feel to boxes, while protecting them from scratches and moisture.

Additionally, UV varnish adheres strongly to both coated folding carton and rugged corrugated board, giving a consistently brilliant finish on all materials.

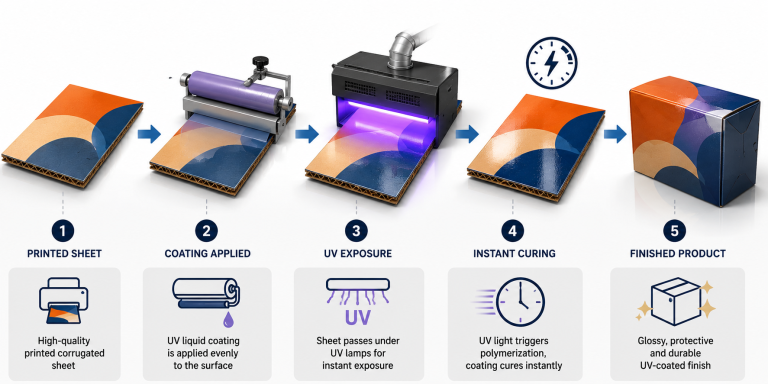

How UV Coating Works

In simple terms, UV coating starts as a transparent liquid resin. After printing, this liquid is spread over the board’s surface. The sheet then passes under powerful UV lamps. The light triggers rapid polymerization: in seconds the liquid turns into a solid plastic film. Because it’s essentially 100% solids, almost none of the coating evaporates – every drop cures into a protective layer. The result is like a thin plastic shell: hard, glossy, and extremely durable.

Application Methods for Corrugated Boxes

Different methods to apply UV coating, depending on the job:

Roller Coating: An anilox roller floods sheets with UV varnish for even, overall coverage on flat board.
Curtain Coating: Large corrugated sheets run under a continuous “curtain” of liquid UV, ensuring uniform coating on thick stacks.
In-Press Varnishing: Varnish units are used on presses, so the board prints and moves immediately to the UV curing lamp for one-pass finishing.
Spot Coating: UV is applied only to specific design elements (logos, text, patterns). This creates shiny highlights against a matte or uncoated background for eye-catching contrast.
Corrugated Compatibility: UV can be applied to corrugated sheets (single-wall or multi-wall) as well. By pre-treating or priming the linerboard, this ensures the varnish bonds and provides a smooth, glossy finish even on very thick substrates.

After application, the boards pass through a UV curing tunnel (generally energy-efficient LED UV lamps are used). The curing is instant – no drying time needed – so sheets exit ready for die-cutting, folding, or shipping.

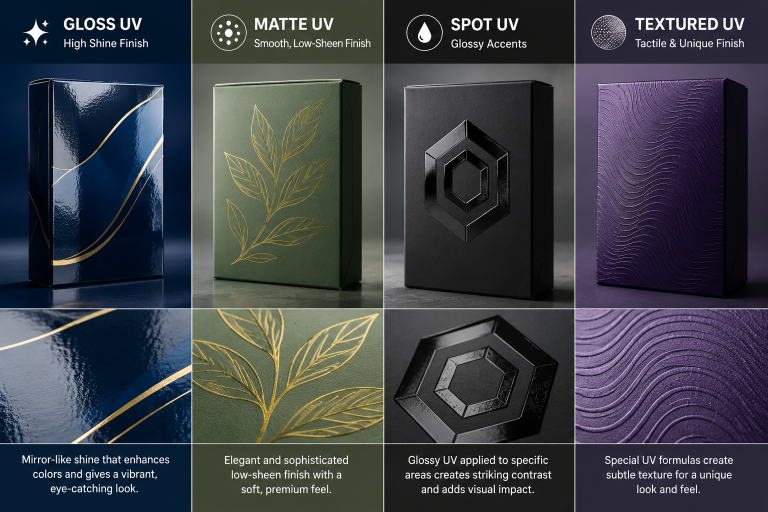

Types of UV Coatings and Finishes

Not all UV is the same. Choosing the right formula and finish is essential to match the any brand’s vision:

Gloss UV: This creates a mirror-like shine that makes artwork and photos “pop.” Gloss UV gives the highest color brilliance and is perfect for bold, colorful designs.
Matte UV: A low-sheen finish with a soft, elegant feel. Matte UV looks sophisticated and keeps reflections down. Often matte flood coats is paired with spot gloss elements for a dramatic effect.
Spot UV: A technique where glossy UV is applied only on selected graphics (like a brand logo or decorative pattern) and leave other areas matte or uncoated. The result is a striking contrast and a raised feel under the touch.
Textured UV: Special UV formulas can add subtle textures (like an “orange-peel” effect) for a unique tactile finish on high-end boxes.

Choosing between these options depends on the design goal. For example, a cosmetics box might use a matte base coating with glossy spot accents, while a children’s toy box might go for all-over gloss for bright appeal.

Advantages of UV Coating in Our Packaging

Using UV coating on our corrugated boxes brings big benefits:

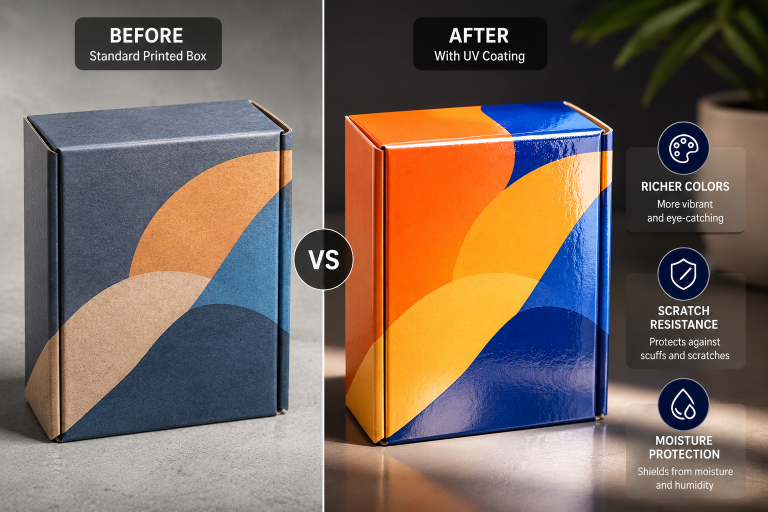

Eye-Catching Look: UV coating creates a vibrant, mirror-like gloss that makes graphics and colors pop. Even a matte UV adds a sophisticated, premium feel. A glossy finish immediately signals quality on the shelf.
Durability: The cured UV layer is very hard and abrasion-resistant. It protects prints from scratches, scuffs and fingerprints, so boxes look great after shipping and handling.
Fast Production: UV cures instantly under the lamp, so there’s no drying time. Boxes can be folded and shipped immediately, speeding up production and shortening lead times.
Special Effects: With spot UV and textures unique highlights can be added. For example, a matte black box with a glossy logo looks custom and high-end. These effects give packaging a bespoke, premium finish.
Premium Markets: UV coating is common in gift, luxury, and retail packaging. It is frequently seen on cosmetics, wine and spirits, gourmet food and high-end electronics, where a product needs to stand out.

Overall, UV coating turns ordinary printed boxes into durable, premium presentation pieces. Many brands – from boutique food and beverage brands to beauty and electronics companies – rely on UV finishes to reinforce their high-end image.

Considerations and Limitations

UV coating is great, but there are a few trade-offs:

Higher Cost: UV varnish and curing equipment are more expensive than standard aqueous coatings. This can raise the price per box, though in many cases the premium finish justifies it.
Cracking on Folds: The UV film is quite stiff. If a heavy coat is applied across a fold line, it may crack. This can be avoided by not coating too close to scored edges or by using flexible UV formulations on foldable parts.
Recyclability: Standard UV coatings can be harder to remove in recycling. For projects requiring full recyclability, special de-inkable UV formulations that wash out during the pulping process.
Equipment Maintenance: UV lamps must be kept clean and at full power to ensure complete curing. Maintenance teams should regularly check lamp output and replace the bulbs as needed to avoid under-cured spots.

By planning production and choosing the right coating for each job, these issues can be managed so that UV coating delivers maximum impact.

Environmental and Efficiency Aspects

From an environmental standpoint, UV coating has some advantages:

No VOCs: UV coatings are 100% solids, so they emit virtually no volatile organic compounds. This makes them more eco-friendly than solvent-based finishes.
LED Curing: Use of energy-efficient LED UV systems. LEDs use less electricity, have no warm-up time, and produce no ozone or excess heat compared to older lamps.
Worker Safety: Modern LED UV emitters produce virtually no UV-C or ozone, making the system much safer to operate.
Recyclable Packaging: A UV-coated corrugated box can still be recycled with paper. If needed, special UV varnishes are used that wash out in the pulping process.
Energy Savings: Instant UV curing means no ovens or chill rollers. This cuts facility energy use and speeds up production, reducing overall footprint.

Additionally, because UV dries on contact, less paper is wasted from smudges or offsetting between sheets. In many cases, the higher quality and lower waste of UV finishing help offset its costs.

Environmental and Efficiency Aspects

From an environmental standpoint, UV coating has some advantages:

No VOCs: UV coatings are 100% solids, so they emit virtually no volatile organic compounds. This makes them more eco-friendly than solvent-based finishes.
LED Curing: Use of energy-efficient LED UV systems. LEDs use less electricity, have no warm-up time, and produce no ozone or excess heat compared to older lamps.
Worker Safety: Modern LED UV emitters produce virtually no UV-C or ozone, making the system much safer to operate.
Recyclable Packaging: A UV-coated corrugated box can still be recycled with paper. If needed, special UV varnishes are used that wash out in the pulping process.
Energy Savings: Instant UV curing means no ovens or chill rollers. This cuts facility energy use and speeds up production, reducing overall footprint.

Additionally, because UV dries on contact, less paper is wasted from smudges or offsetting between sheets. In many cases, the higher quality and lower waste of UV finishing help offset its costs.

Design and Production Tips

To get the best result, keep these in mind:

Specify Coated Areas: Provide a separate file layer or mask for any UV-coated regions. Use solid 100% coverage shapes (no gradients or halftones) for spot UV.
Bleed and Folds: Include the standard 1–2 mm bleed if coating to the edges. Avoid heavy UV right on score lines, since thick coats can crack when folded.
Proof It: Print a physical sample with the UV coating on your actual stock. Seeing and feeling the finish ensures the design turns out as expected before mass production.

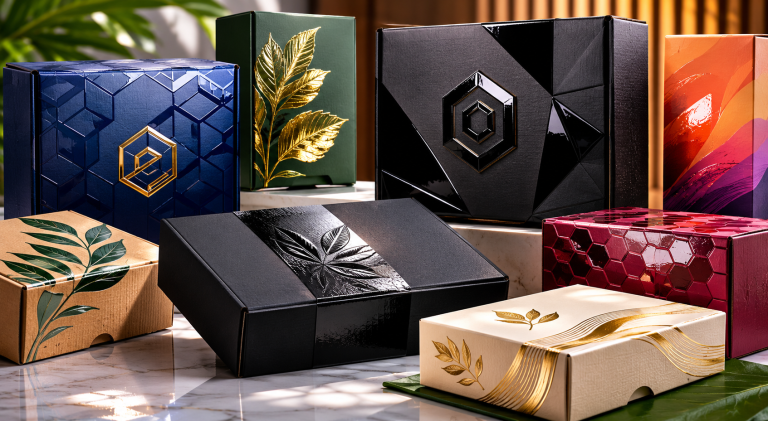

Why Choose UV-Coated Corrugated Boxes?

Great packaging sells products, and UV-coated boxes catch the eye. The glossy shine and crisp colors signal quality and invite a closer look. In fact, this finish is especially popular for gift items, wine and spirits bottles, cosmetics, and high-end electronics. Plus, the tough UV film keeps your prints looking perfect through shipping and handling.

The latest UV-LED curing technology and thorough quality checks ensures every box is looking flawless. When you choose UV-coated boxes, you’re getting packaging that not only protects your product but also looks and feels premium.
